Home » Shop » hot sale » AC Infinity 2′ x 2′ Advanced Grow Tent Kit

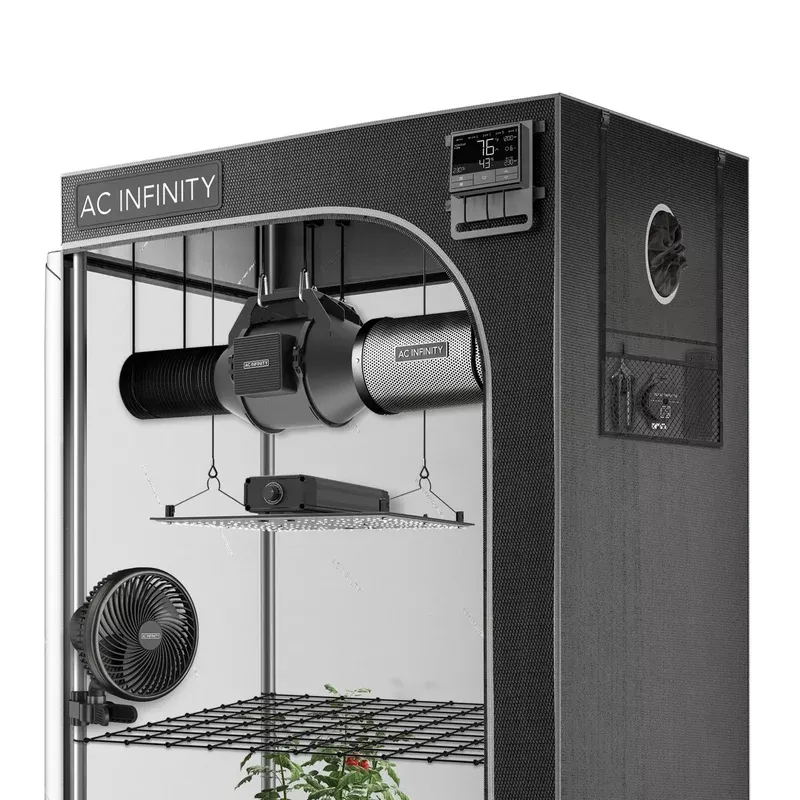

AC Infinity 2′ x 2′ Advanced Grow Tent Kit

Original price was: $119.76.Current price is: $83.85.

Sale!

53 in stock

SKU: YL25294488 Category:

An advance grow system utilizing smart controls with integrated fans and lights to manage your grow environment. The intelligent controller can program each connected equipment to dynamically adjust speed and brightness based on climate and schedules. The next-gen EC inline fan with carbon filter and ducting manages your tents climate conditions by routing heat, humidity, and odor away from it. Custom air circulation ranging from gentle breezes for seedlings to a powerful airflow for flowering can be provided by the cutting-edge EC clip fan. The grow light features an unibody aluminum build, full-spectrum Samsung LM301B LEDs, and algorithmic diode positioning to maximize plant yields. These devices are housed in a premium grow tent, containing the thickest steel frames and 2000D mylar canvas to create a climate-controlled grow space.This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environmen

  • An advance grow tent kit with smart controls and integrated components to start an indoor growing system.

  • Controller automates each fan and light with individual programs to dynamically adjust speed and brightness.

  • Set climate triggers, schedules, and grow cycles. Access data graphs, alerts, and programs via Bluetooth App.

  • Next-gen EC inline fan 4, EC circulator clip fan 6and 100W full-spectrum grow light with Samsung LM301B LEDs.

  • Premium 2000D Mylar tent 24x24x72, Australian carbon filter, ducting, fabric pots, pruning snips, and more.

Integrating these components is the CONTROLLER 69, engineered to provide each device with shared or independent programming. Go beyond basic on/off triggering by setting dynamic programs that adjust fan speed and light intensity in response to changing temperature and humidity. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect with the AC Infinity app via Bluetooth to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually. The full grow tent kit will include the following:

  • CLOUDLAB 722Advance Grow Tent 24x24x72 (x1)

  • CONTROLLER 69Grow Tent Controller (x1)

  • CLOUDLINE LITE 4 – Inline Fan 4″ (x1)

  • IONBOARD S22LED Grow Light Board 100W (x1)

  • CLOUDRAY A6Circulation Clip Fan 6″ Manual Swivel(x1)

  • Australian Carbon Filter 4 (x1)

  • 4 Flexible Ducting, 8 Long (x1)

  • 5-gallon Fabric Pots (x2)

  • Elastic Trellis Netting 2×2 (x1)

  • Micro-tip Pruning Shears (x1)

  • Other Hanging and Installation Accessories

Product Identification
Manufacturer AC Infinity Inc.
Product Name Advance Grow System B22
Product Model AC-PKB22
UPC Code 819137022836
Product Manual
Product Manual
PDF
Grow Tent|Inline Fan|Clip Fan|Controller|LED Grow Light|Carbon Filter|Ducting
Product and Mounting Dimensions – Grow Tent
Tent Dimensions 23.62″ x 23.62″ x 70.86″ (60 x 60 x 180 cm)
Duct Opening Sizes 4″, 6″
Viewing Window Size 9.84 x 9.84 in. (25.0 x 25.0 cm)
Side Intake Hole Size 5.90 x 14.17 in. (15.0 x 36.0 cm)
Mounting Strap Length 5.51 in. (140.0 cm)
Product Performance and Technical Specs – Grow Tent
Outer Tent Material Oxford
Inner Tent Material Mylar
Pole Material Steel
Pole Thickness 22 mm
Beam Weight Capacity 150 lbs.
Plant Capacity 2
Product and Mounting Dimensions – Inline Fan
Duct Size 4″
Total Dimensions 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
Mounting Hole-To-Hole Distance 3.15 x 2.36 in. (8.0 x 6.0 cm)
Screw Hole Size 0.197 in. ( 0.5 cm)
Cord Length to Controller 72 in. (6 feet)
Cord Length to Plug 72 in. (6 feet)
Performance and Technical Specs – Inline Fan
Total Airflow 165 CFM
Total Noise 29 dBA
Max Speed 2800 RPM
Static Pressure 324 Pa
Voltage 100-240V AC
Frequency 50/60Hz
Max Power Draw 25 W
Average Power Usage 18 W
Current 0.55 A
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140F
Ingress Protection IP-44
Fan Bearings Dual Ball
Mounting Positions Horizontal or Vertical
L10 Life Expectancy 67,000 Hours
Fan Quality Approvals CE, RoHS
CE Certification (Whole Product)
PDF
RoHS Cert. (Whole Product)
PDF
Product and Mounting Dimensions – Clip Fan
Impeller Size 6.5″
Total Dimensions 8.74 x 10.47 in. (22.2 x 26.6 cm)
Cord Length to Plug 96 in. (8 feet)
Product Performance and Technical Specs – Clip Fan
Maximum Airflow 315 CFM
Total Noise 33 dBA
Static Pressure 25 Pa
Operating Voltage 100-240V AC
Power 8 W
Current 0.14 A
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140F
Waterproof Rating IP-44
Rotation Range 90
Tilt Angle 55
Oscillation Manual Adjustable Tilt
Fan Bearings Dual Ball Bearing
Mounting Positions Horizontal or Vertical
Life Expectancy 67,000 Hours
Product and Mounting Dimensions – Controller
Total Dimensions 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance 4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size 0.119 in ( 0.3 cm)
Display Size 3.5 x 1.4 in. (9 x 3.5 cm)
Sensor Probe Length 144 in. (12 feet)
Product Performance and Technical Specs – Controller
Maximum Devices Controlled 4
Max Power Supported 10 W
Programming Temperatures 32 to 140F
Operating Voltage 9 to 18V
Power 1 W
Current 0.1 A
Power Input 12V from Device
Operating Humidity 35 to 85% RH
FCC Cert. (Whole Product)
PDF
Product and Mounting Dimensions – LED Grow Light
Light Dimensions 11.81 x 11.81 in. (30.0 x 30.0 cm)
LED Board Thickness 0.43 in. (1.1 cm)
Driver Dimensions 7.16 x 1.57 in. (18.2 x 4.0 cm)
Product Performance and Technical Specs – LED Grow Light
Coverage 2 x 2 ft.
Diodes Samsung LM301B
LED Chip Count 204
LED Driver AC Infinity Proprietary Driver, Model GTS-100
Efficiency 2.7 mol/j
PPFD 998 PPFD
Spectrum 660nm, 730nm, 3000K, 5000K
Wattage 100 W
Voltage 100-277V AC
Frequency 50/60 Hz
Current 2.0 A
Controller Digital Dimming Timer
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140F
Life Expectancy 50,000 Hours
Product and Mounting Dimensions – Carbon Filter
Duct Opening Size 4″
Total Dimensions 13.35 x 6.97 in. (33.3 x 17.7 cm)
Flange Length 1.46 in. (3.7 cm)
Product Performance and Technical Specs – Carbon Filter
Flange Material Aluminum
Flange Design Reversible
Mesh Material Galvanized Steel
Carbon Type Australian Virgin RC412
Carbon Grade 1200+ IAV
Carbon Thickness 38mm
Maximum Airflow 210 CFM
Product Dimensions – Ducting
Ducting Size 4 in. (10.2 cm)
Length 96 in. (8 ft)
Product Performance and Technical Specs – Ducting
Outer Layer PVC Thermoplastic
Inner Material Aluminum Foil
Internal Structure Spiral Steel-Wire
