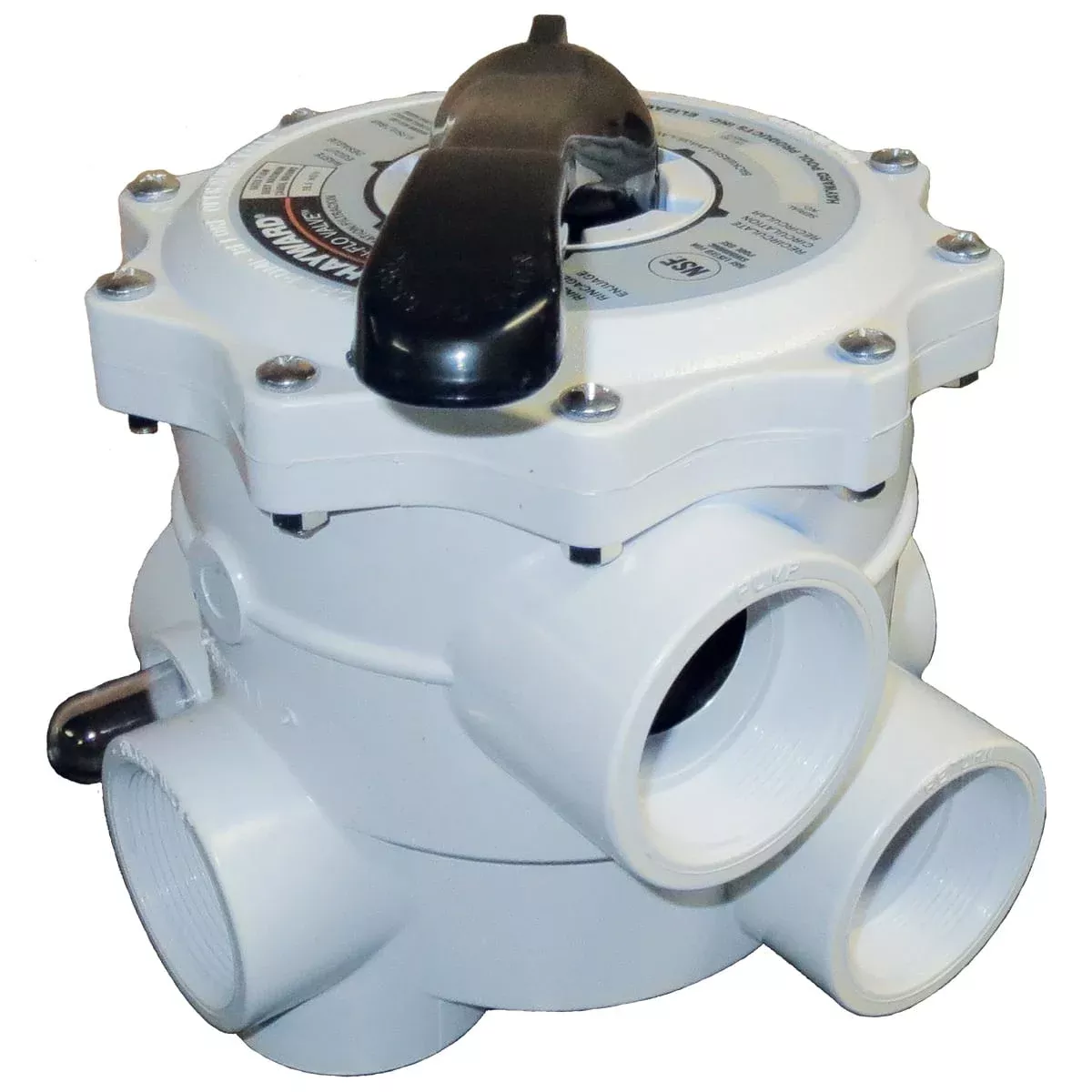

Hayward SP0715ALL Pro-Series Vari-Flo 2″ Multiport Valve – Universal Side Mount
The Hayward SP0715ALL is a versatile 6-position multiport valve designed for side-mount installation on sand and DE filters. This universal model features open ports on all connections, allowing you to configure it for your specific plumbing setup. Engineered for maximum flow at lower pressure drops, this valve delivers efficient filtration while reducing energy consumption.
Key Features
- Universal Design – All ports are open and ready for use; includes 2 threaded plugs for unused ports
- 6 Valve Positions – Filter, backwash, waste, rinse, recirculate, and closed for complete filtration control
- 2″ FIP Connections – Female pipe thread connections accommodate standard 2″ plumbing
- Side Mount Configuration – Designed for installation on the side of vertical sand and DE filters
- Built-In Sight Glass – Integral sight glass allows visual monitoring of backwash cycle completion
- Easy Operation – Ergonomic lever-action handle allows simple positioning with clear labeling
- Hydro-Engineered Design – Optimized internal flow paths minimize pressure drop for more efficient filtration
- Durable Construction – Reinforced thermoplastic material withstands pool chemicals and outdoor conditions
Compatible Filters
This valve works with Hayward side-mount filters including:
- Pro Series sand filters (various models)
- Pro Grid vertical DE filters (various models)
- Micro-Clear vertical DE filters (various models)
- Other sand and DE filters with 2″ side-mount valve configuration
Product Specifications
- Manufacturer: Hayward Pool Products
- Part Number: SP0715ALL
- UPC: 610377044714
- Series: Pro-Series Vari-Flo
- Valve Type: Multiport control valve
- Positions: 6 (filter, backwash, waste, rinse, recirculate, closed)
- Port Size: 2″ FIP (female pipe thread)
- Mount Type: Side mount
- Configuration: Universal (all ports open)
- Material: Reinforced thermoplastic
- Color: White
What’s Included
- Complete multiport valve assembly
- Sight glass with gasket
- 2 threaded 2″ port plugs for unused connections
- Pressure gauge port (1/4″ NPT)
Valve Position Functions
- FILTER – Standard operation mode for normal filtering and regular pool vacuuming
- BACKWASH – Reverses water flow to clean accumulated debris from filter media; directs dirty water to waste
- RINSE – Flushes filter after backwashing to ensure all dirty water is expelled and media is properly settled
- WASTE – Bypasses filter to drain pool water or vacuum heavy debris directly to waste line
- RECIRCULATE – Circulates water through the system while bypassing the filter (useful for mixing chemicals)
- CLOSED – Shuts off flow from pump to filter for maintenance or winterization
Installation Notes
- Universal configuration allows flexible plumbing arrangements
- Use included plugs to seal unused ports
- All connections are 2″ FIP – verify your plumbing connections before installation
- Pressure gauge can be installed in 1/4″ NPT port (gauge sold separately)
- Always turn off pump before changing valve positions
- Do not force valve handle – if resistance is felt, check for proper pump shutdown
Maintenance Tips
- Backwash when pressure gauge reads 8-10 PSI above clean starting pressure
- Always rinse for 15-30 seconds after backwashing
- Inspect sight glass periodically and clean if cloudy or obstructed
- Lubricate O-rings and seals annually with silicone-based lubricant
- Check for leaks around unions and gaskets during operation
- Replace internal components (spider gasket, springs) as needed per manufacturer recommendations
Replacement Parts Available
Common replacement parts for this valve include:
- Spider gasket and spring assembly
- Handle and dial assembly
- Sight glass and gasket
- Complete body assembly
- Internal diverter assembly
Note: This is a universal valve with all ports open. Use the included plugs to seal any unused connections. Verify your filter’s valve configuration and port sizing before ordering.
SKU: SP0715ALL
