Part 5121-06A
Manufacturer Code 91693551
Dimensions 3-3/4″ X 1-1/2″
Alternate Part ‘s 30238, 354021012, 91693551, AF91693551, AQF1016708, FPF0407, 35-402-1012
Product Description

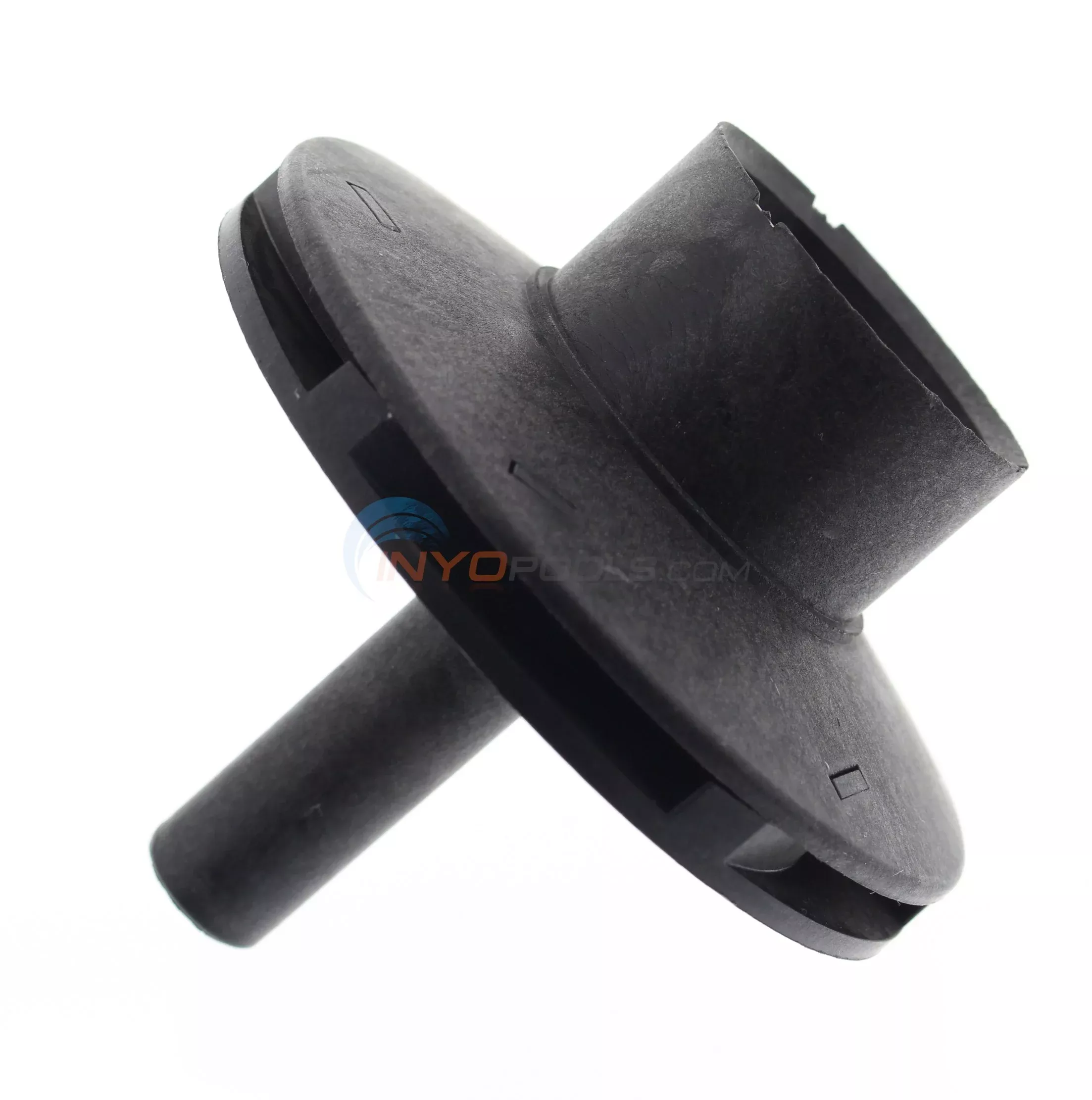

INYO5121-06A AQUA FLO91693551 THIS IS A 3/4 HP IMPELLER USED ON THESE AQUA FLO PUMPS FMCP, FMHP, TMCP BLACK PLASTIC IMPELLER INCLUDES: IMPELLER ONLY CLOSED FACE NUMBER OF VANES: 6 OUTSIDE DIAMETER: 3-3/4″ THICKNESS: 13/32″ (OUTSIDE THICKNESS AT OUTSIDE EDGE) THICKNESS: 7/32″ (B) (INSIDE THICKNESS AT OUTSIDE EDGE) FRONT TO BACK: 3-5/8″ (FROM END OF SHAFT TO FRONT ON INTAKE) INLET OUTSIDE DIAMETER: 1-3/4″ INLET INSIDE DIAMETER: 1-1/2″ SHAFT COVER LENGTH: 1-3/4″ SHAFT COVER OD 5/8″ (THIS IS WHERE THE IMPELLER SCREWS ONTO THE MOTOR SHAFT) MARKINGS: THERE IS A RED DOT ON THE SHAFT NEAR THE END SHAFT SEAL USED WITH THIS IMPELLER OPT5250-104 MFG 92500150 GENERICPS-200 OR AS-200
