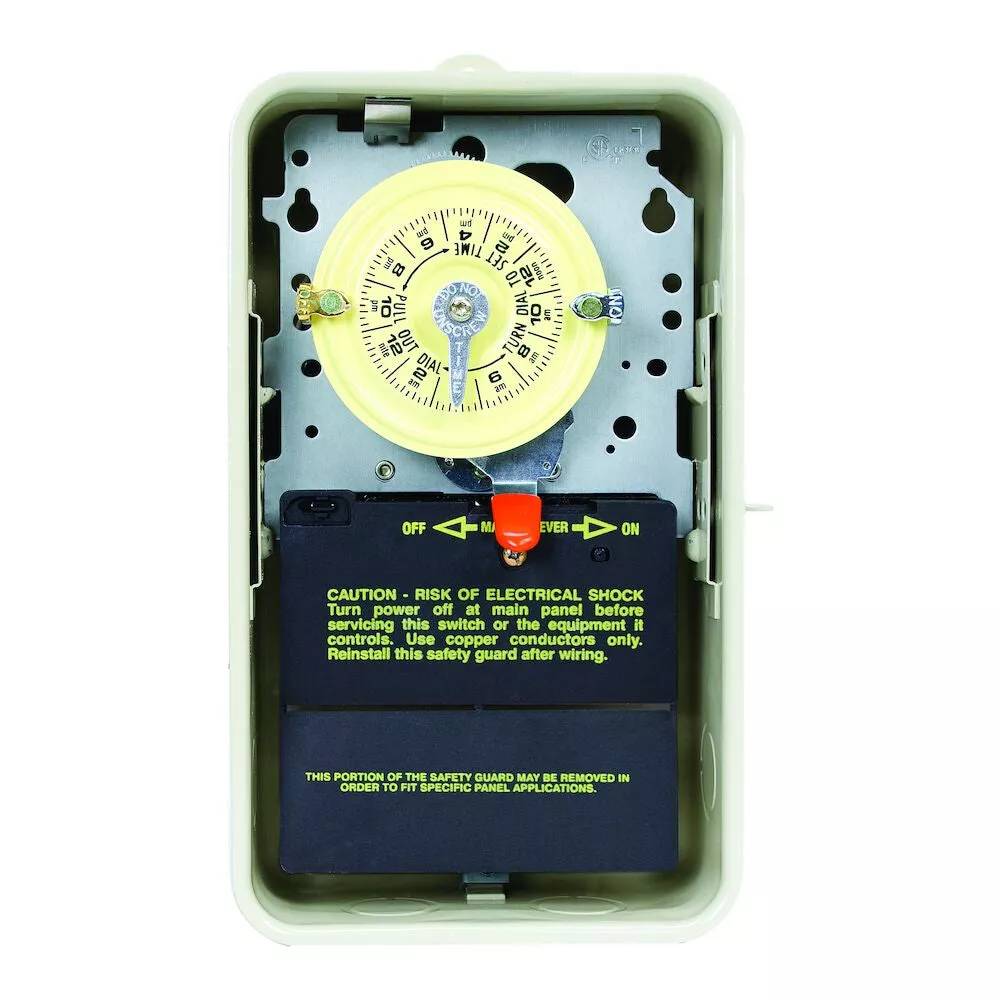

Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure | T104R3
Heavy-duty mechanical time switches to control a single load.
Features:
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper is included
- Teeter-type terminals for multiple load connections
Specifications:
- Switch Type – DPST
- Input Voltage – 280-277V, 60Hz
- Electronic Ballast – 16A
- Maximum ON/OFF Operations – 12
- Operation Mode – 24 Hour
- Enclosure Type – Outdoor Type 3R Metal
- Maximum Power Consumption (W) – 3W
Applications:
- Heater Thermostat Control
- Motor Control
- Pump Control
- Water Circulation
