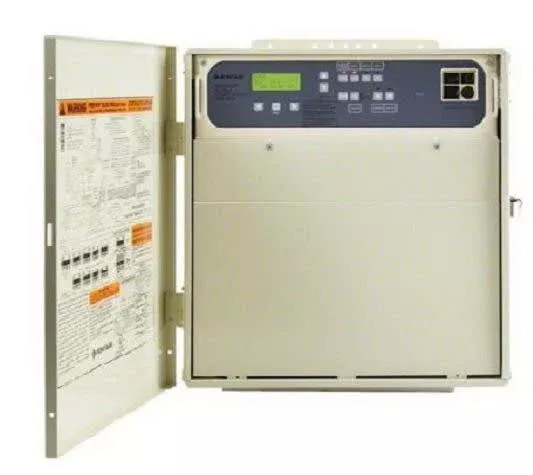

Pentair EasyTouch PSL4 Pool & Spa Base Automation | 522354
The Pentair EasyTouch PSL4 Pool & Spa Base Automation (522354) is a foundational automation control panel designed to manage your pool and spa equipment from a centralized location. This base system provides the power center and logic needed to sequence and schedule pumps, heaters, lights, and other connected gear, helping simplify control while improving efficiency and equipment longevity.
What This Product Is For
This base EasyTouch panel is made for residential pools and spas that want automatic control of key equipment functions. It allows you to set run times, coordinate pump and heater operations, and streamline equipment sequencing so your system runs smoothly with less manual interaction. It’s ideal if you’re upgrading from basic controls or installing automation on a new pool system.
Features & Benefits
- Base automation panel for pool and spa equipment control
- Manages pumps, lights, heaters, and accessory outputs
- Programmable schedules improve energy efficiency and convenience
- Designed for outdoor equipment pad installation
- Expandable with additional interface modules and network options
Installation Notes
- Mount the base panel in a weather-protected equipment area per Pentair specifications
- Connect all pool/spa equipment circuits to appropriate breakers and control outputs
- Configure control schedules using the panel interface or compatible display
- Ensure proper grounding and bonding per local electrical and pool codes
Maintenance Tips
- Inspect breaker connections and wiring periodically for corrosion or loose connections
- Review scheduled run times occasionally to confirm they match seasonal needs
- Keep the equipment area clean and clear of moisture and debris
- Update connected controller software/firmware when available
