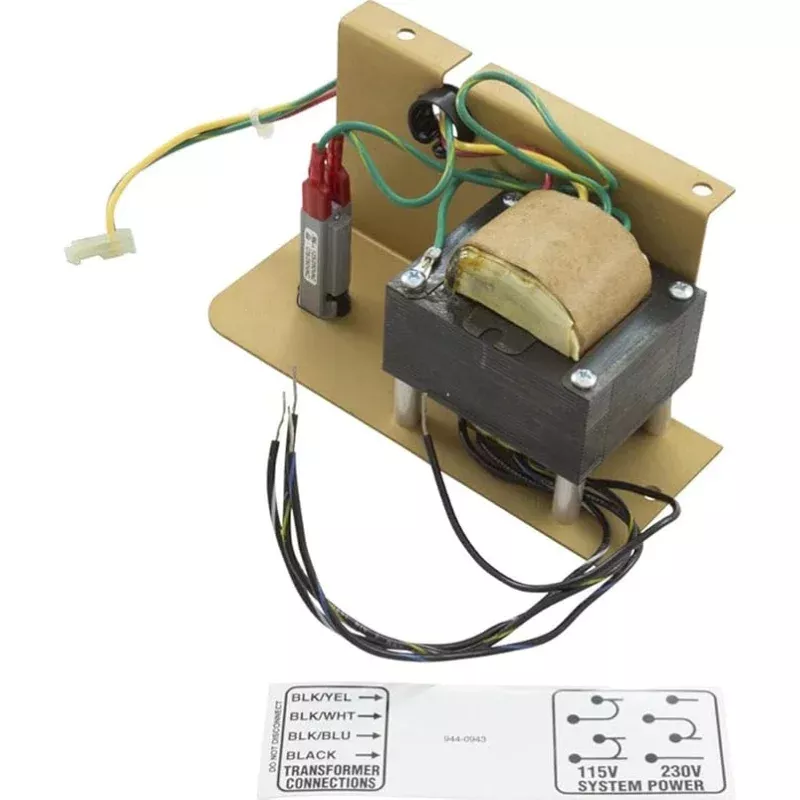

Pentair Transformer AssemblyXFM1BK
OEM Pentair XFM1BK transformer assembly for ComPool LX20, LX30, LX36 & LX80 control panels. 115/230V to 24V power module.
Features
- Genuine Pentair replacement for LX20 / LX30 / LX36 / LX80 control systems
- Converts 115/230 VAC input to 24 VAC control voltage
- Drop-in design suited to LX series control enclosures
- Includes mounting bezel and wiring harness to simplify installation
- Built with 3A resettable breakers for circuit protection
- OEM compatibility ensures system integrity and reliability
The Pentair Transformer Assembly XFM1BK provides a stable 24 VAC output to your ComPool LX series (LX20/30/36/80) control systems. Designed to match Pentairs original specifications, it fits directly into existing control panels with minimal wiring changes. By integrating protective circuitry and consistent voltage conversion, it safeguards your automation electronics from voltage fluctuations.
Pro Tip
Document all wiring before removal, then restore it exactly. While you have the enclosure open, inspect wiring insulation, terminal tightness, and consider adding surge suppression to protect the system from spikes.
Related Parts
- Pentair LX Series Control Board (PCB)
- Pentair LX Surge Suppressor Module
- Pentair LX Fuse / Breaker Replacement
Installation Tips
Turn off all power to the panel before servicing. Label each wire for reconnection. Secure the transformer in place before reconnecting the wiring. Confirm 24 VAC output with a multimeter before closing the enclosure. Keep space for airflow and avoid crimping harness wires.
