Model PL2515
Warranty 1-Year
Product Description

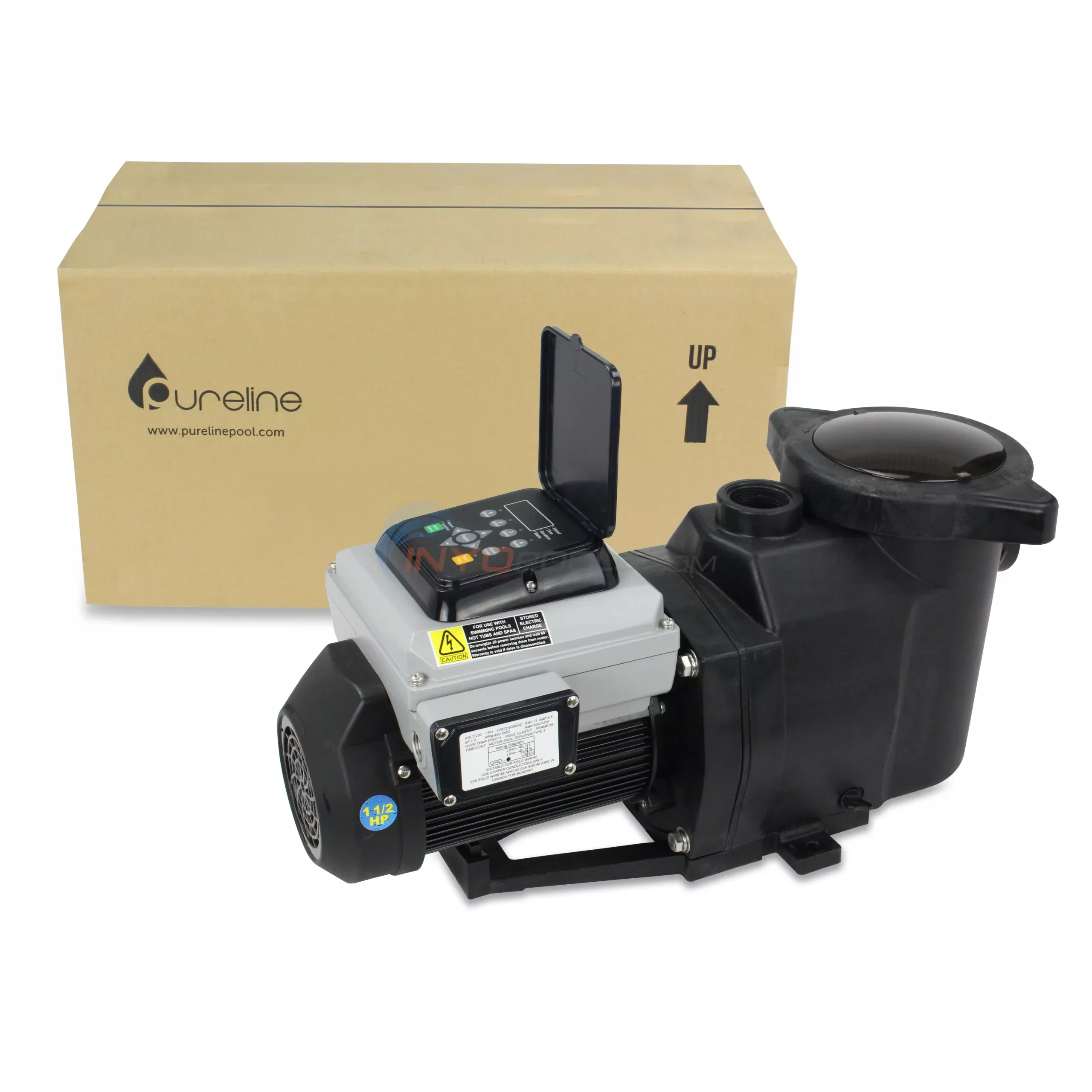

Maximize your savings with the new PureLine Rapids Variable Speed Pump.
The PureLine Rapids Variable Speed Pump now offers fully variable speed pump at an affordable price. The Rapids motor delivers premium energy efficiency and program flexibility with a digital controller mounted directly onto the pump. The Rapids Variable Speed Pump can save you up to 80% in energy costs over single-speed pumps. It also has faster payback than the more expensive variable speed pumps because it is sized to match the performance of the most common medium head pumps.
Click here for 1.5″ Quick Disconnect Unions for the Rapids Pump
Application
- Swimming pools of all types and size (including in-floor cleaning systems, solar heating systems, water features or water garden)
- In-ground spas or in-ground pool/spa combinations
Specifications:
- Suction lift: Up to 7.3’ above water level
- Nominal Motor Horsepower (hp): 1.50
- Total Horsepower (thp): 1.50
- Service Factor: 1.0
- Hydraulic Horsepower (hhp): 0.721
- Speed (rpm): 750-3450
- WEF: 8.30
- Volts: 230
- Amps: 3,450 RPM’s = 5.94 amps, 2,500 RPM’s = 2.4 amps, 1,725 RPM’s = .95 amps and 750 RPM’s = .34 amps
Pump Features
- Self-priming (vertical suction lift up to 7.3’ above water level)
- Quiet Operation
- Up to 80% energy savings over single speed pumps
- Full Variable Speed (750-3450 RPMs)
- Strainer basket cover removes easily for cleaning
- Transparent strainer basket cover lets know when basket needs cleaning
- All components molded of corrosion-proof reinforced thermoplastic for extra durability and long life
- Drain plug for easy pump winterization
- Mechanical seals are made from carborundum & graphite for long life and low noise
- Motor shaft is stainless steel grade 304
- Energy-Star Certified!
Controller Features
- Simple user interface
- Onboard time of day schedule
- Adjustable priming mode
- Programmable quick clean mode
- Diagnostic alarm display and retention
- One week. clock retention for power outages
- *The black control can be rotated 180°. However, be very careful not to pinch the wire harness underneath.
Pump Performance Curve
Pump Dimensions
Disclaimer:
All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.
Product Specifications
HP:1.5 HPManufacturer:PurelinePool / Spa Type:IngroundVolts:230 VSpeed:VariableAmps:5.94 ampService Factor:1.0Total HP:1.5 HPPort Size:1.5 in.Pump Model:RapidsInstallation:ResidentialPool Type:In Ground
