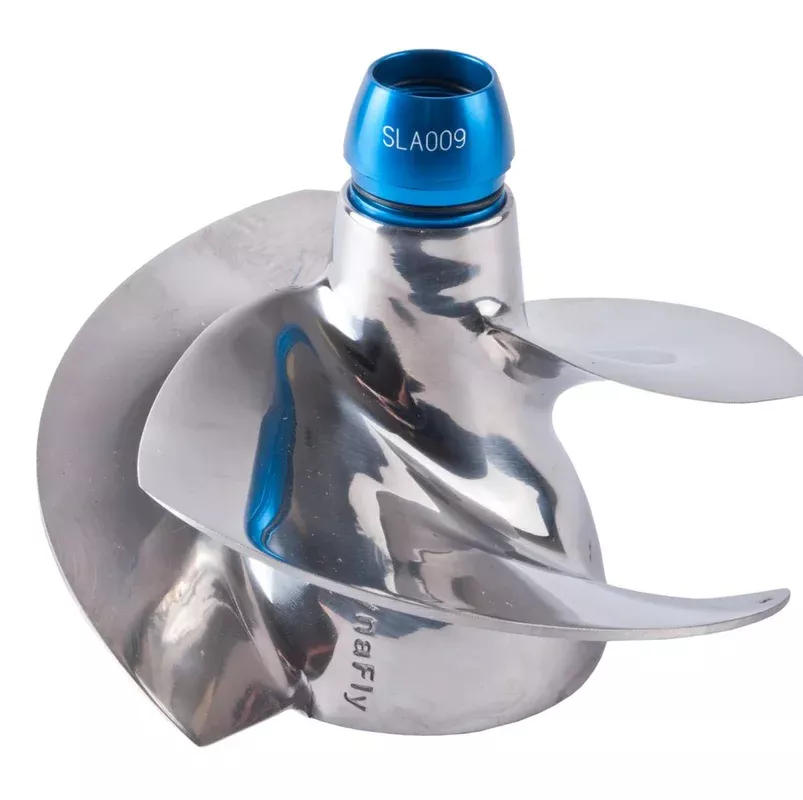

Solas Dynafly Series Impeller compatible with Kawasaki 800 SX-R 2003-11

Details

Dynafly Maximum Acceleration Our new impeller is designed to give high compression ratio pumps a stronger acceleration with less cavitation. This impeller is capable of giving your PWC an incredible boost in its performance. The SOLAS product line includes Dynafly impellers for the Kawasaki Ultra 150 pump and the Sea Doo 951 pump. SOLAS also has developed new impellers for other pumps. Please check the application chart for further details.

Applications

2003 800 SX-R
2004 800 SX-R
2005 800 SX-R
2006 800 SX-R
2007 800 SX-R
2008 800 SX-R
2009 800 SX-R
2010 800 SX-R
2011 800 SX-R

Installation

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) fromthe stator

3.)Hold the rear end of the shaft with abench vise. Remove the impeller with an impeller wrench. Turning counter clockwisewill loosen the impeller.

4.)Visually inspect thread on shaft andimpeller for debris or damage. Apply grease or anti-seize on the thread beforeinstallation.

5.)Screw the impeller by hand; please becareful of the sharp edge of the impeller. Tighten with the impeller wrench. Ifthe impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and put it back onthe PWC.

*this installation guide is s estedfor reference only
*please refer to your originalservice manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts andare available for purchase on our website
